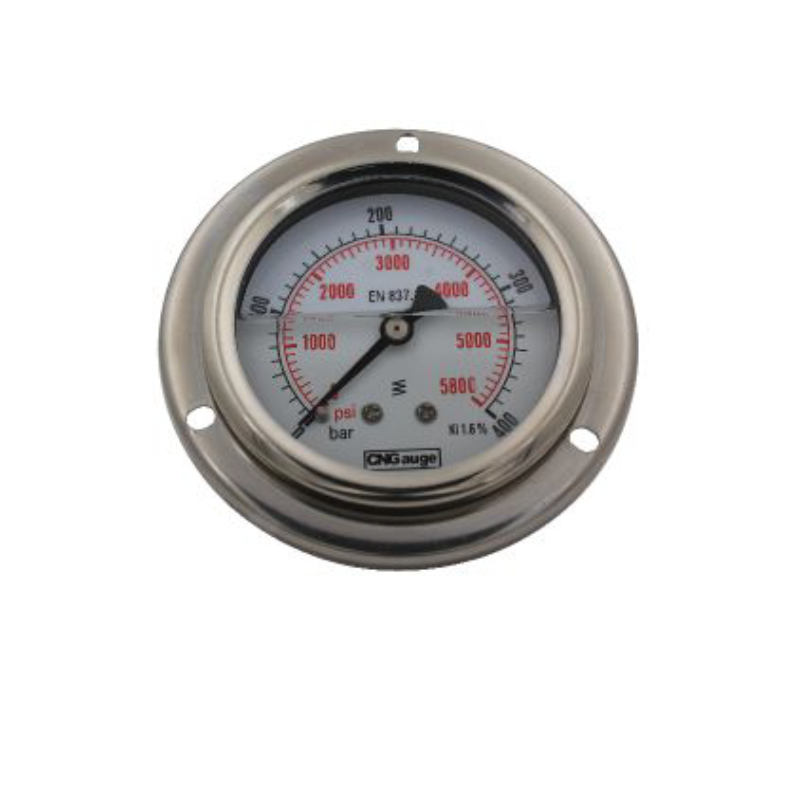

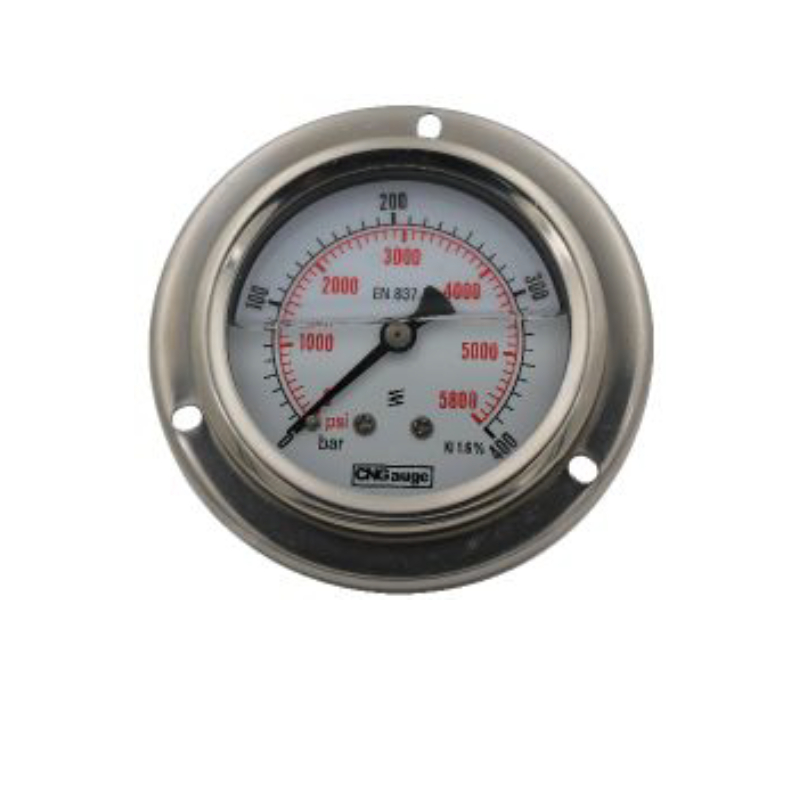

Model: B101F & C101F
Body Material: Mild steel
Pressure element Material: Phosphorus bronze
Working Pressure: 0-250bar
Mechanical Accuracy:1.6% F.S.@25℃
| Specification | Body Material | SS304 |
| Socket Material | Brass | |
| Pressure element Material | Phosphorus bronze | |
| Window Material | Polycarbonate | |
| Socket | M12*1.5, 1/4”BSP...... | |
| Working Pressure | 0-250bar | |
| Working Temp | -40~120℃ | |
| Testing Pressure | 0-400bar | |
| Leakage Testing | 350bar air pressure | |
| Burst Testing | 520bar liquid pressure | |
| Burst Pressure | >1000bar | |
| Mechanical Accuracy | 1.6% F.S.@25℃ | |
| Warranty | 2year or 100K Km |
