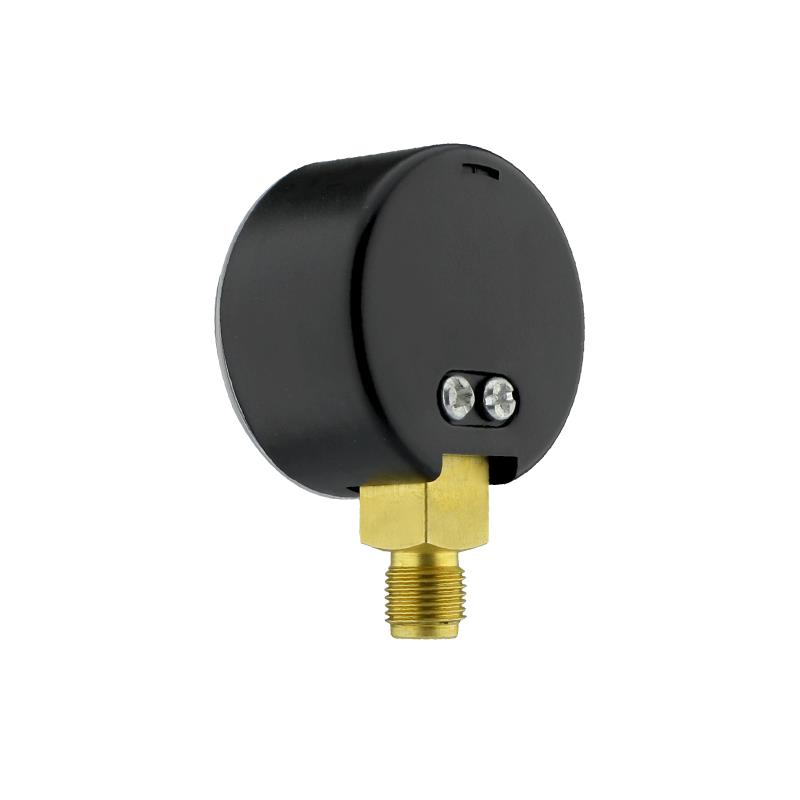

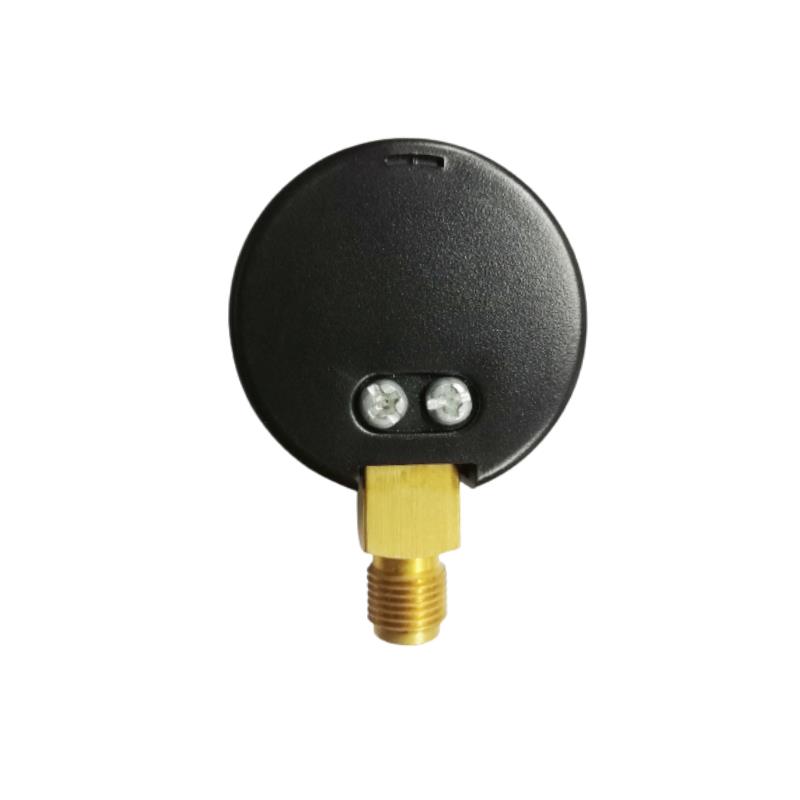

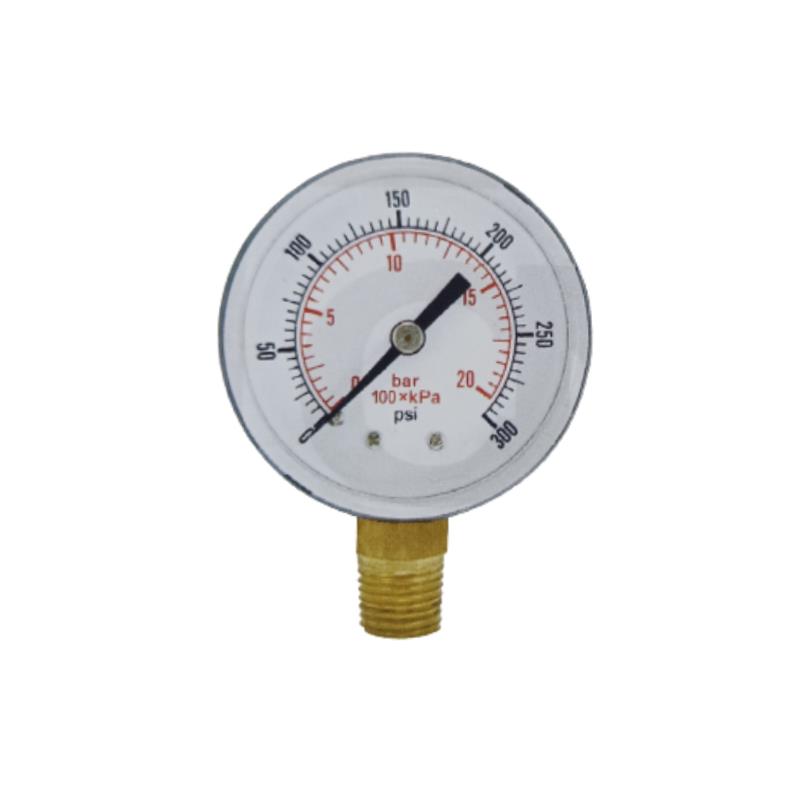

Model: 301A
Case Material: ABS
Pressure Range: VAC~9PSI~15000PSI
Accuracy: 2.5%/2.0%/1.6%/1.0%*(*available)
Size: 40mm、50mm、63mm (Other available)
301 & 311 series is designed for general purpose of industrial and daily use at low cost.
Specification | Case | ABS |
Ring | None | |
Window | Acrylic | |
Dial | Aluminium | |
Pointer | Aluminium | |
Connection | Brass | |
Movement | Brass | |
Bourdon tube | Phosphorus Bronze | |
Thread size | 1/8'’,1/4'’,3/8'’,1/2'’ | |
Accuracy | 2.5%/2.0%/1.6%/1.0%*(*available) | |
Pressure range | VAC~9PSI~15000PSI |
