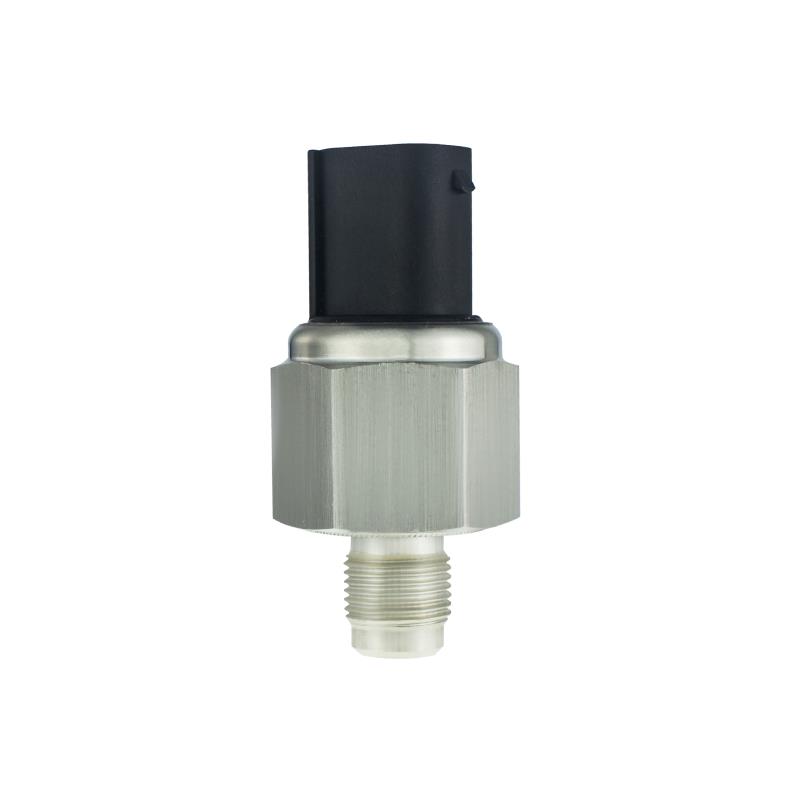

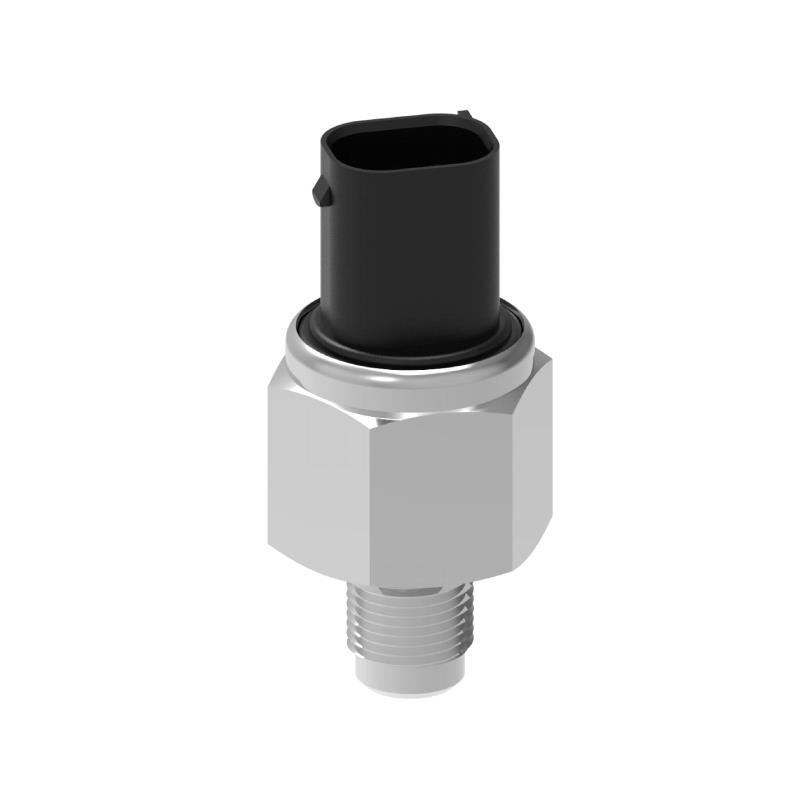

Model: PS1-N
Sensor Type: Ceramic
Pressure Range: VAC~0~250bar
Accuracy: (0.5% available)
PS1 series is ceramic type pressure sensor, and to check the pressure of most media of gas and fluid. Such as automobile, aerospace, machinery, industry, chemical industry, medical, etc.
Specification | Sensor type | Ceramic |
Body material | Can choose SS304, SS316, SS316L, Brass, Aluminium | |
Pressure range | VAC~0~250bar | |
Default connector | N3 (mate with AMP2-967642-1, can choose N, M, E) | |
Thread size | M12x1(can choose M12, B4, B8, N4, N8 ) | |
Pressure response time | 5ms | |
Burst pressure | 1.5~4X pressure | |
Working temperature | -40~120℃ | |
Accuracy | 1.0%(0.5% available) | |
Protection | IP67 | |
Temperature compensation | Yes |
