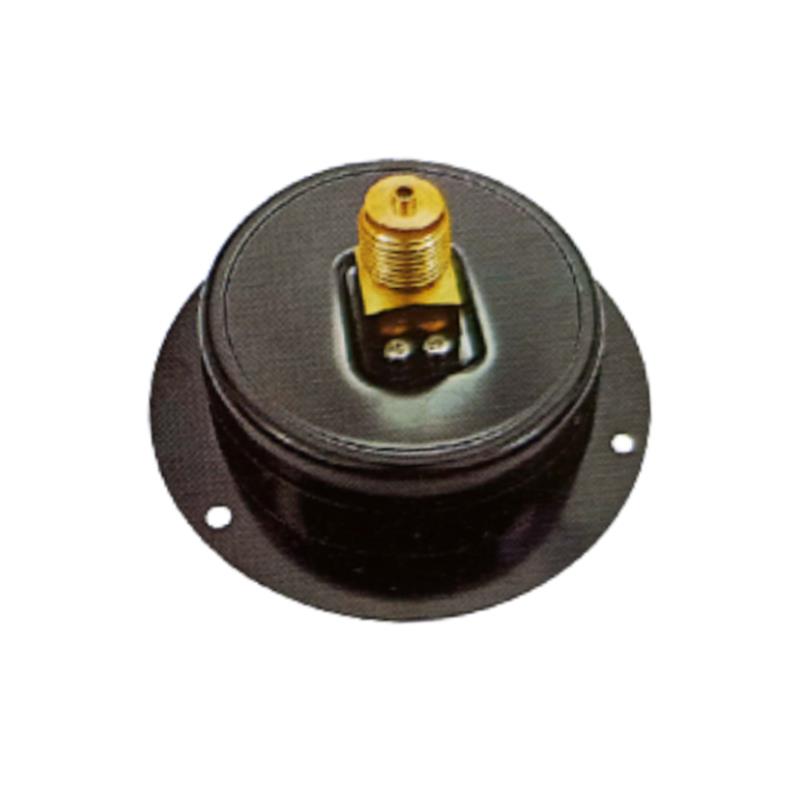

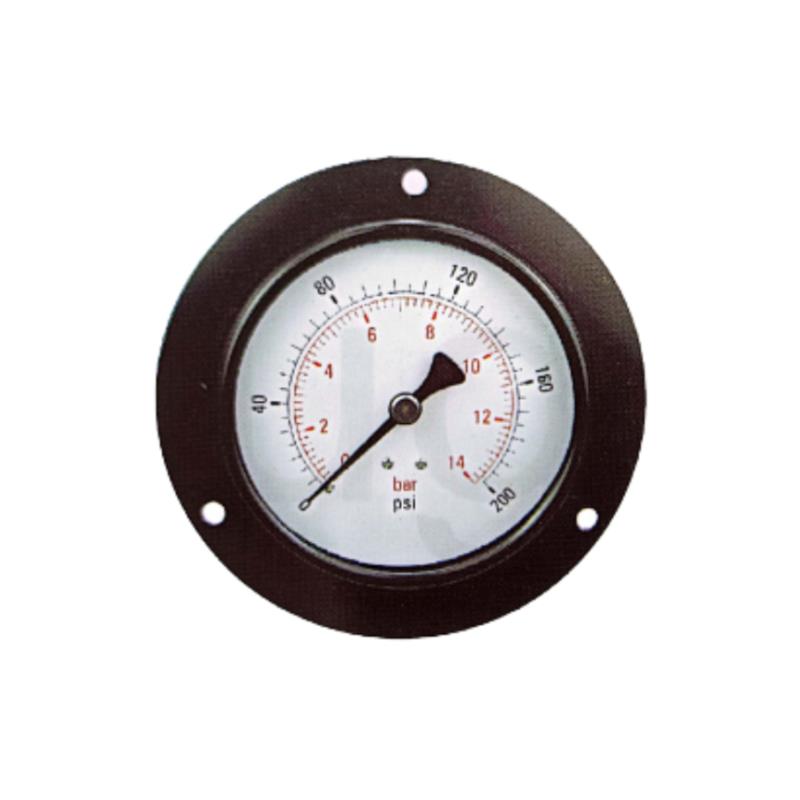

201F Press-on Mild Steel Case Standard Pressure Gauge

Case Material: Mild Steel

Pressure Range: VAC~9PSI~15000PSI

Accuracy: 2.5%/2.0%/1.6%/1.0%(*available)

Size: 40mm、50mm、63mm、75mm、80mm、100mm(Other available)

201 Series.pdf

Download 

B201B-B4.stp



B201B-N4.stp



Product Details

201 &202 series are used in where the pressure medium is no-corrosive to brass, phosphor bronze, or beryllium copper. Air, oil, gas and water services are the most common applications.

Specification	Case	Mild Steel
	Ring	Mild Steel
	Window	201: Acrylic 202: Common Glass
	Dial	Aluminium
	Pointer	Aluminium
	Connection	Brass
	Movement	Brass
	Bourdon tube	Phosphorus Bronze
	Thread size	1/8'’,1/4'’,3/8'’,1/2'’
	Accuracy	2.5%/2.0%/1.6%/1.0%(*available)
	Pressure range	VAC~9PSI~15000PSI
