Model: 113B & 114B
Size: 63mm、100mm (Other available）
Filling Liquid: Glycerine (default)、Silicon Oil、 Low Temperature Glycerine
Case Material: SS304, Polished
Pressure Range: VAC~9PSI~15000PSI
Accuracy: 1.6%/1.0%(available)

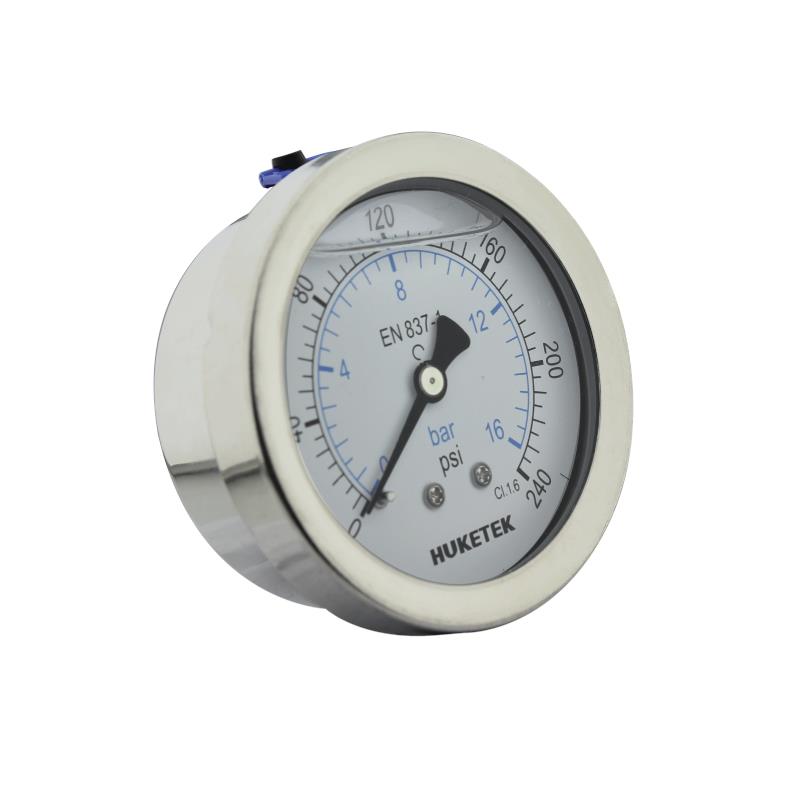

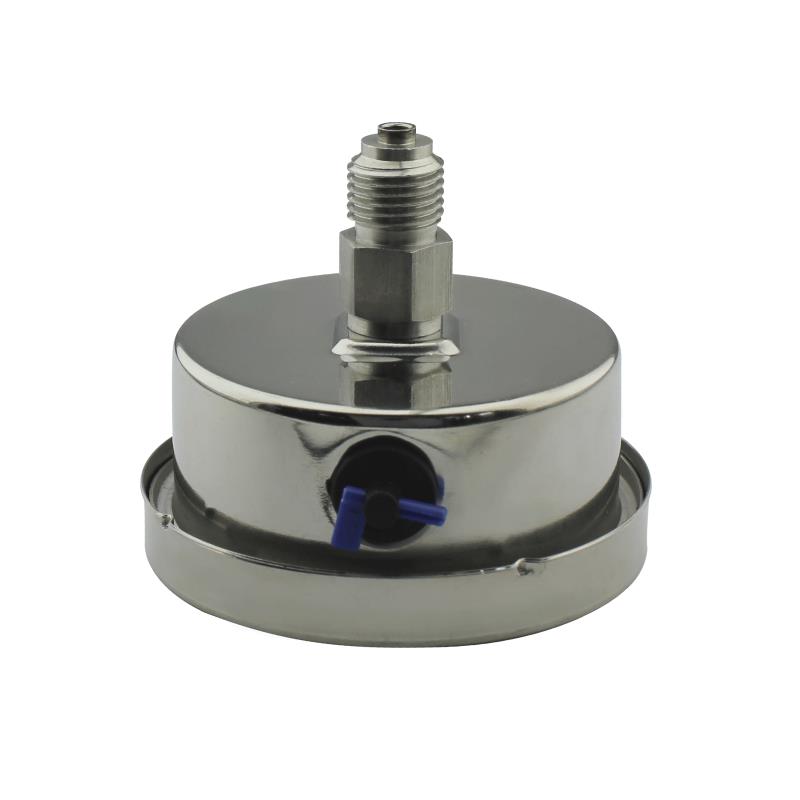

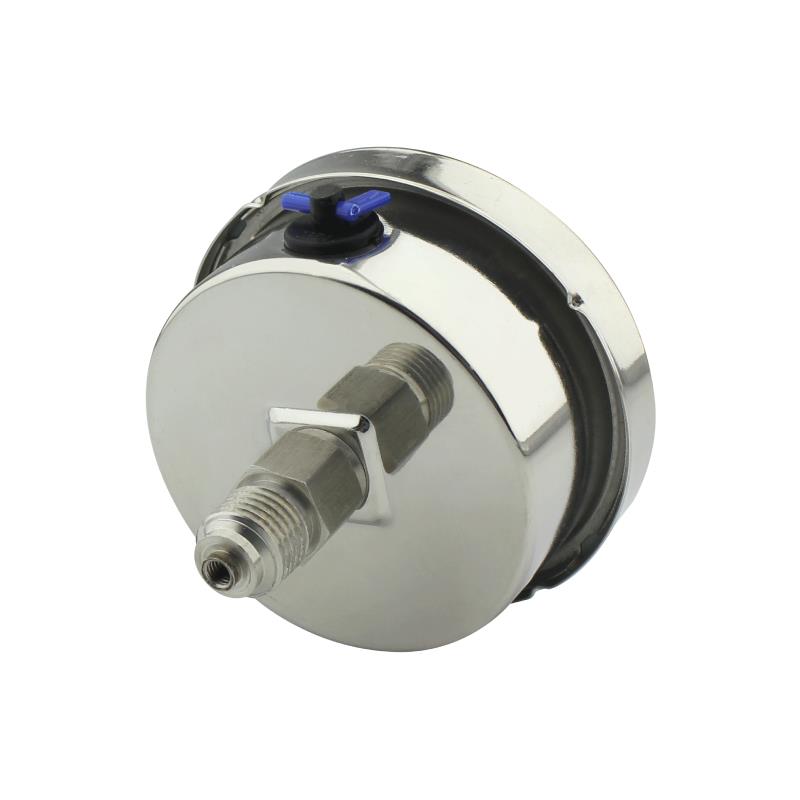

113 &114 series are all stainless steel materials with bayonet bezel, glycerine filled. Adjustable pointer is optional.
Specification | Case | SS304, Polished |
Ring | SS304, Polished | |
Window | 113:Polycarbonate 114:Tempered Glass | |
Dial | Aluminium | |
Pointer | Aluminium | |
Connection | SS316 | |
Movement | SS304 | |
Bourdon tube | SS316 | |
Thread size | 1/8'’,1/4'’,3/8'’,1/2'’ | |
Accuracy | 1.6%/1.0%(available) | |
Pressure range | VAC~9PSI~15000PSI |
