Case: Mild Steel
Pressure Range: VAC~9PSI~15000PSI
Precision: 2.5%/2.0%/1.6%/1.0%*(*available)
Size: 40mm、50mm、63mm (Other available)

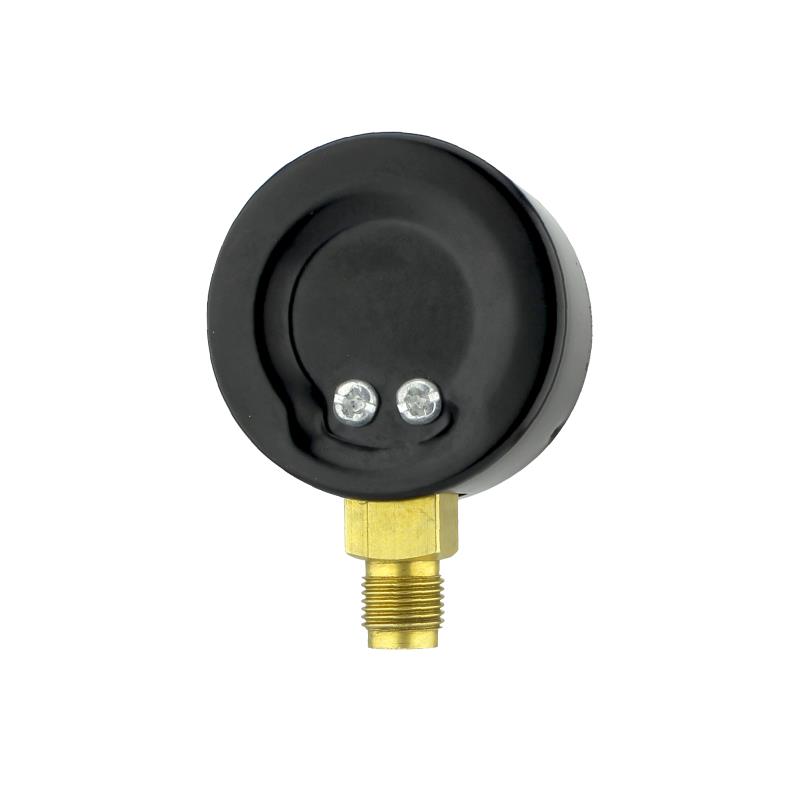

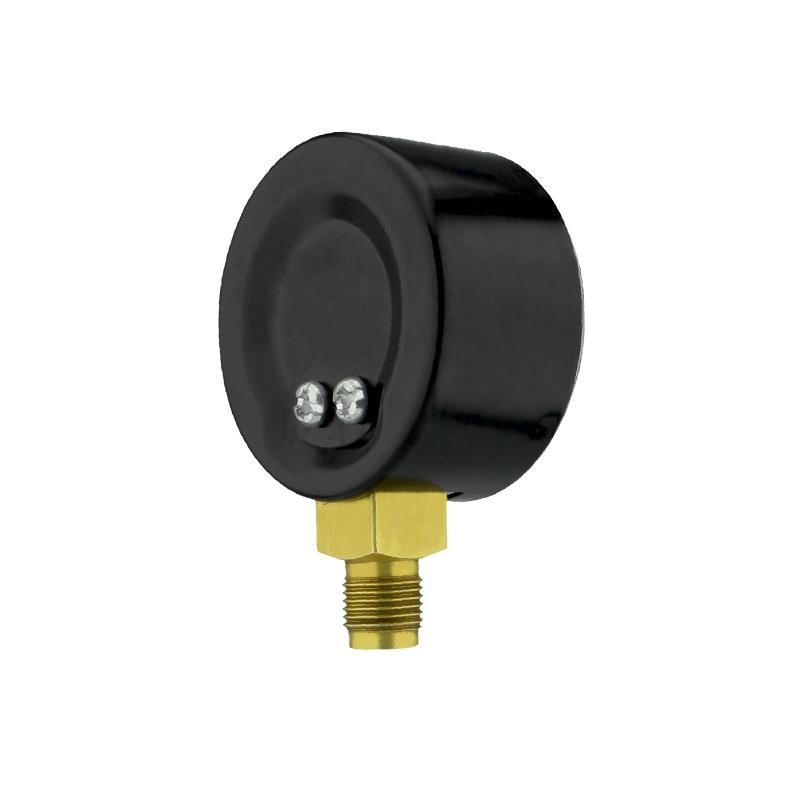

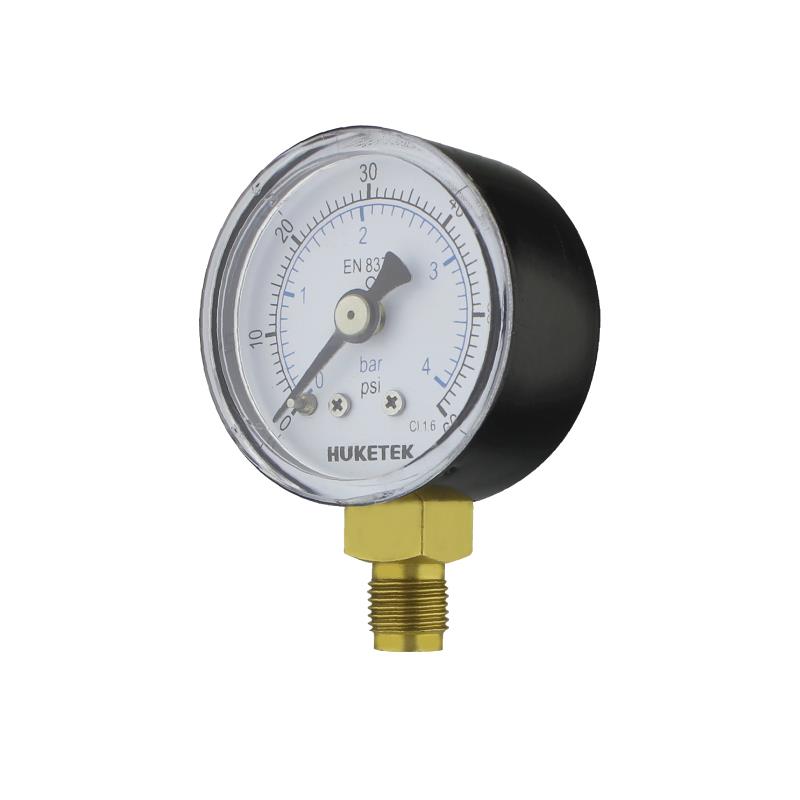

221 series is an economic cost pressure gauge, the case is made by mild steel and black plated, can be used for air, water equipment.
Specification | Case | Mild Steel |
Ring | None | |
Window | Acrylic | |
Dial | Aluminium | |
Pointer | Aluminium | |
Connection | Brass | |
Movement | Brass | |
Bourdon tube | Phosphorus Bronze | |
Thread size | 1/8'’,1/4'’,3/8'’,1/2'’ | |
Accuracy | 2.5%/2.0%/1.6%/1.0%*(*available) | |
Pressure range | VAC~9PSI~15000PSI |
